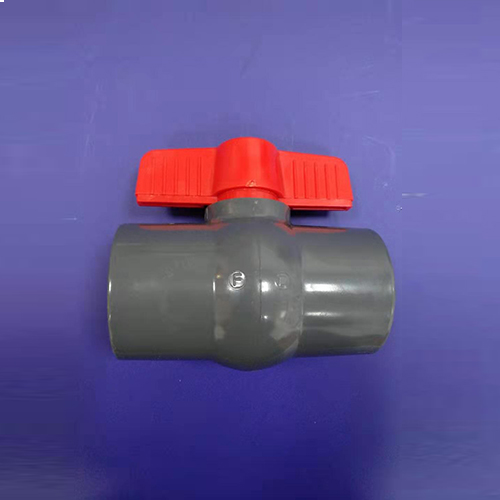

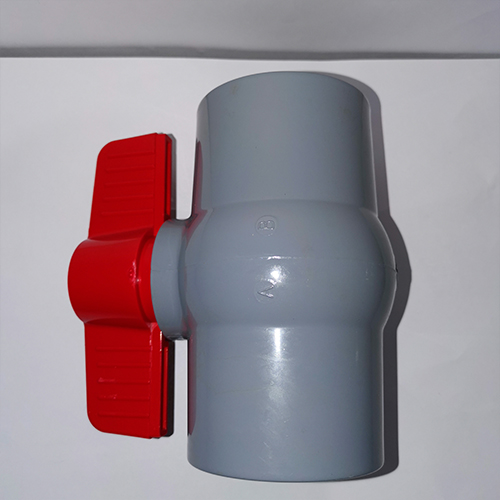

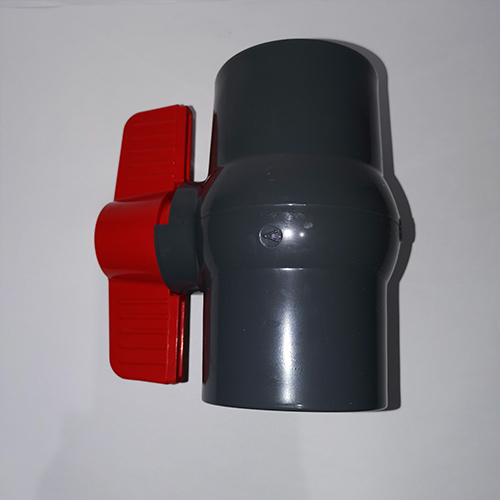

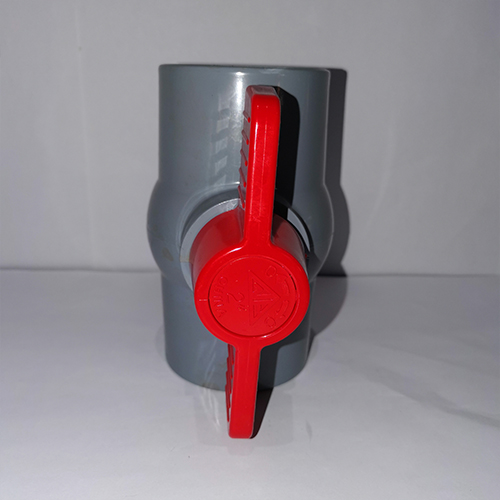

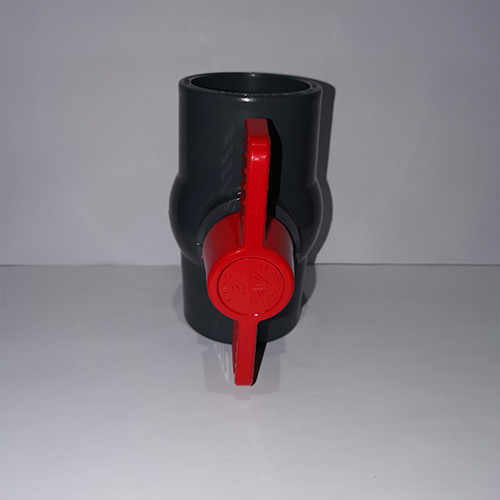

简单球阀
产品介绍
|
型号 |
本体材质 |
垫座材质 |
"O"环材质 |
|
VP-900 |
PVC |
PTFE |
EPDM |
|
VP-901 |
CPVC |
PTFE |
EPDM |
|
VP-902 |
UPVC |
PTFE |
EPDM |
|
VP-909(CTS) |
CPVC |
PTFE |
EPDM |
|
VP-910 |
PVC |
EPDM |
EPDM |
|
VP-911 |
CPVC |
EPDM |
EPDM |
|
VP-912 |
UPVC |
EPDM |
EPDM |
* 尺寸：由1/4" ~ 4"
* 接口：牙口、平口或铜管规格(只提供1/2"至1")
* 测试压力：225 PSI
* 工作压力：150 PSI
* 操作方便；使用成本低廉。
* 流量损失小。
* 应用范围广泛；如供水系统、废水处理、化学工厂、农业灌溉等。
* CPVC制品，可替代金属制品，用於卫浴设备之热水系统。
|
NSF认证 |
尺寸 |
规格 |
|
VP-900 |
1/2" ~ 4" |
ANSI，NPT |
|
VP-901 |
1/2" ~ 2" |
ANSI，NPT |
|
VP-909 |
1/2" ~ 1" |
CTS 铜管规格 |
|
CV值 [GPM /(1 lbf/in 2 ) 1/2 ] |
|
|
全开度：90° |
|
|
尺寸 |
CV值 |
|
1/2" |
8.84 |
|
1" |
25.24 |
|
1-1/4" |
38.53 |
|
1-1/2" |
51.28 |
|
2" |
96.67 |
|
2-1/2" |
162.37 |
|
SIZE Nom. |
7mm 1/4" |
10mm 3/8" |
15mm 1/2" |
20mm 3/4" |
25mm 1" |
30mm 1-1/4" |
40mm 1-1/2" |
50mm 2" |
65mm 2-1/2" |
80mm 3" |
100mm 4" |
|
|
thd./in |
NPT |
18 |
18 |
14 |
14 |
11.5 |
11.5 |
11.5 |
11.5 |
8 |
8 |
8 |
|
BSPT |
19 |
19 |
14 |
14 |
11 |
11 |
11 |
11 |
11 |
11 |
11 |
|
|
JIS |
d1 |
--- |
17.78 |
21.70 |
25.70 |
31.67 |
37.57 |
47.54 |
59.44 |
75.87 |
88.83 |
113.98 |
|
d2 |
--- |
18.40 |
22.30 |
26.30 |
32.33 |
38.43 |
48.46 |
60.56 |
76.60 |
89.60 |
114.70 |
|
|
BS |
d1 |
--- |
17.10 |
21.30 |
26.70 |
33.50 |
42.20 |
48.20 |
60.30 |
75.10 |
88.80 |
114.20 |
|
d2 |
--- |
17.30 |
21.50 |
26.90 |
33.70 |
42.40 |
48.40 |
60.50 |
75.30 |
89.10 |
114.50 |
|
|
ANSI |
d1 |
--- |
17.04 |
21.23 |
26.57 |
33.27 |
42.04 |
48.11 |
60.17 |
72.85 |
88.70 |
114.07 |
|
d2 |
--- |
17.45 |
||||||||||
